If vertical overlaps (dark stripes) or gaps (bright stripes) appear in your print at the same distance, please use the swath adjustment (step over) function.

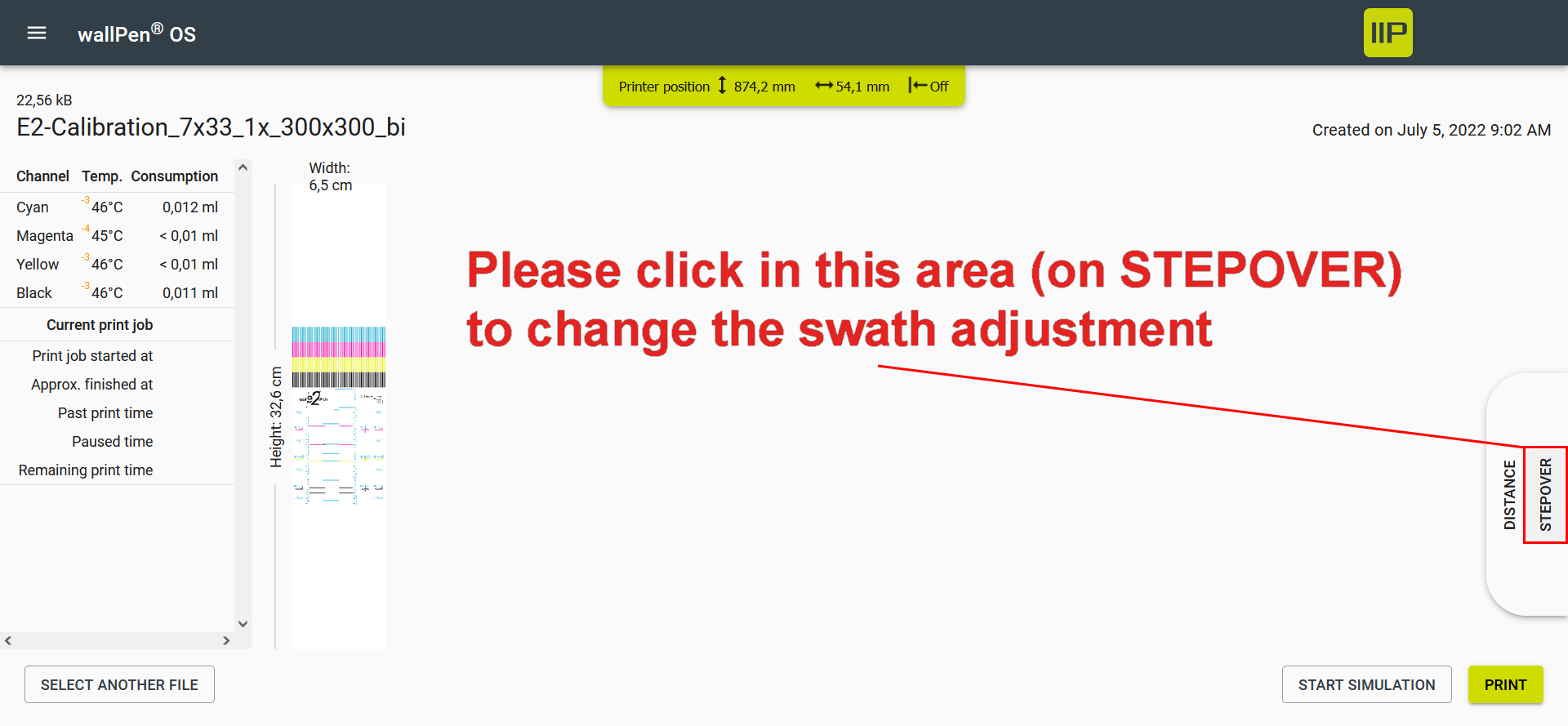

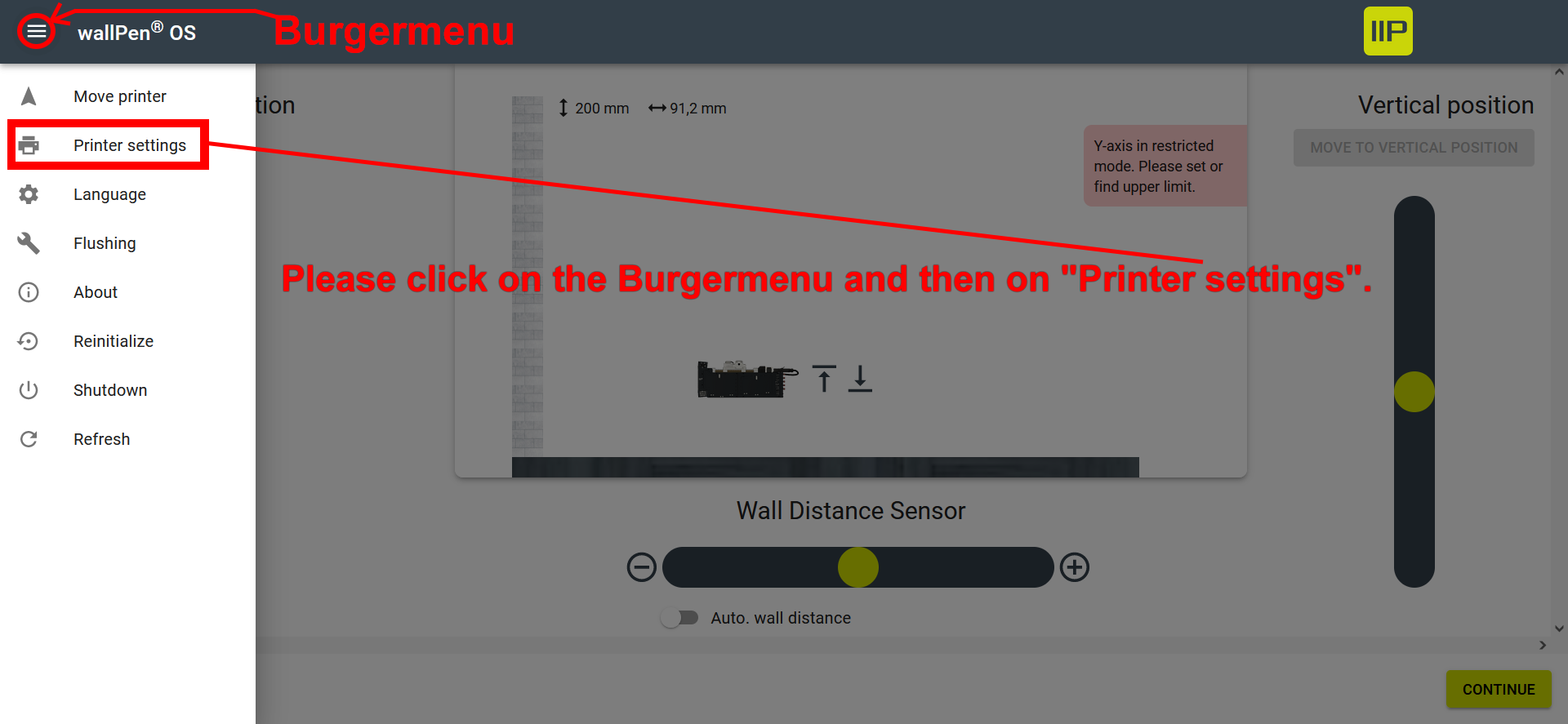

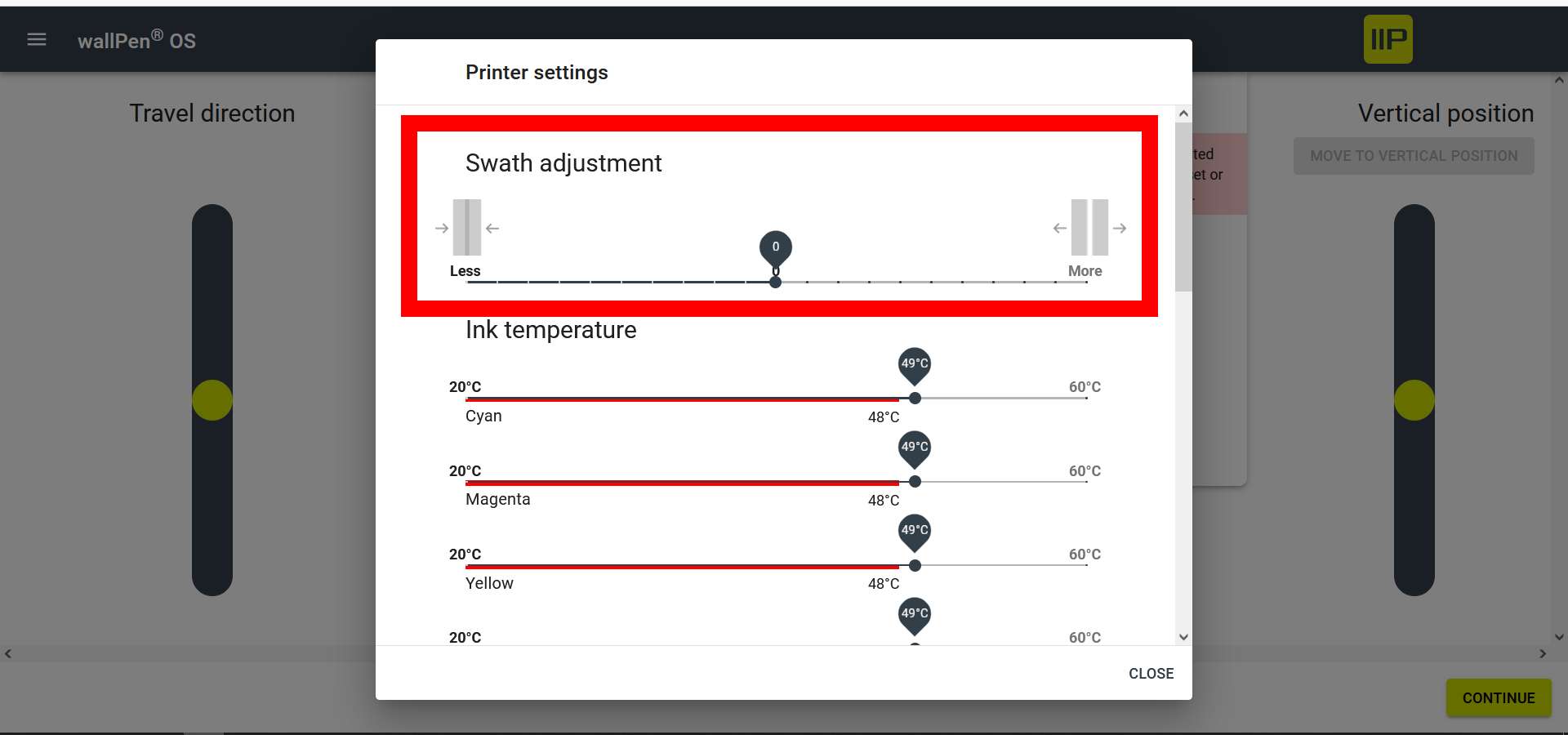

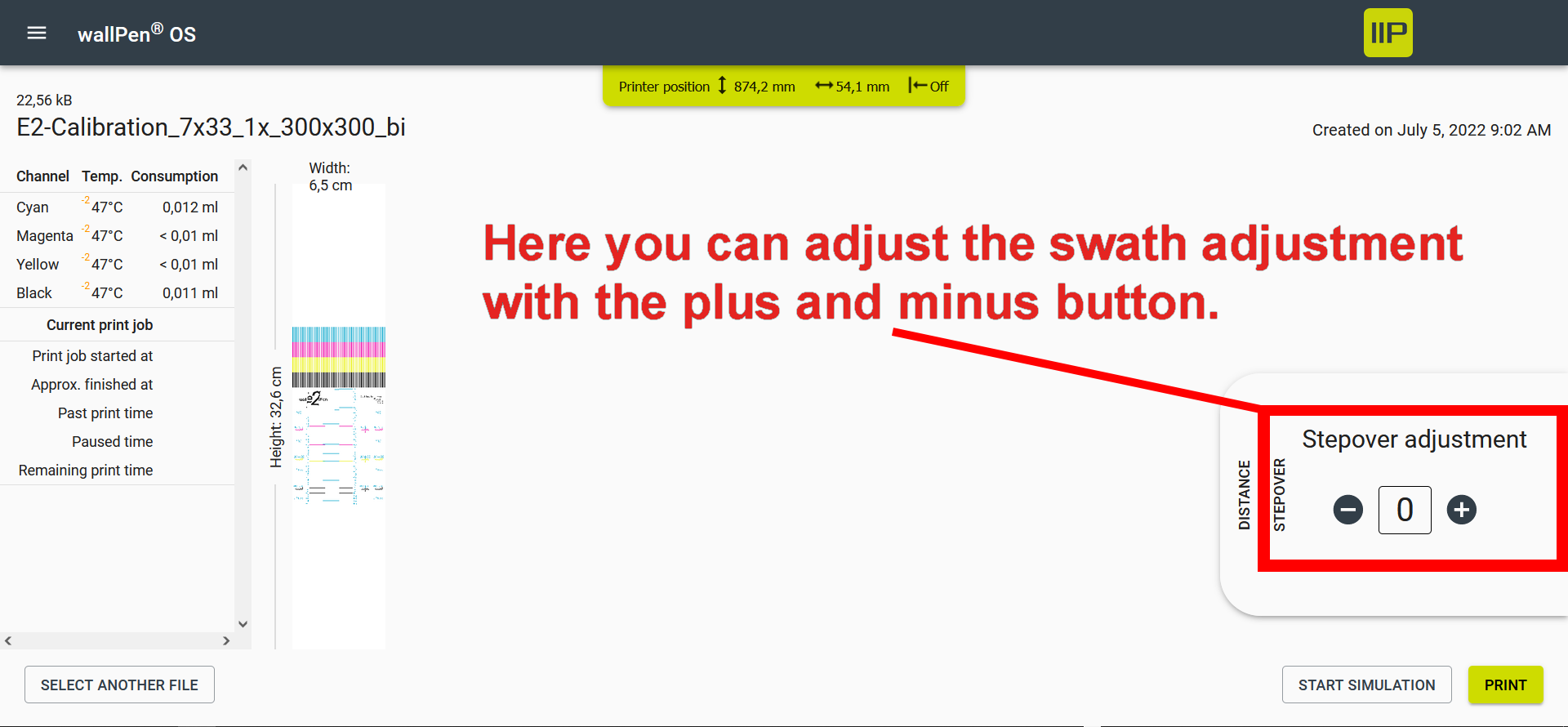

You can access the swath adjustment via the wallPen OS menu under the printer settings (see image #1+2) or on the wallPen OS page where you can start printing. (see image #3+4).
Image #1
Image #2
Image #3
Image #4
- If gaps or bright stripes appear, please move the Swath Adjustment Slider to the left or use negative values.
- If overlaps or dark stripes appear, please move the Swath Adjustment Slider to the right or use positive values.
Always change the value only minimally and thus feel your way to the perfect setting for your device!
You can apply the swath adjustment in print mode. A change of the swath adjustment will be visible after about five to eight print swaths.
